Elite Industrial Line Laser

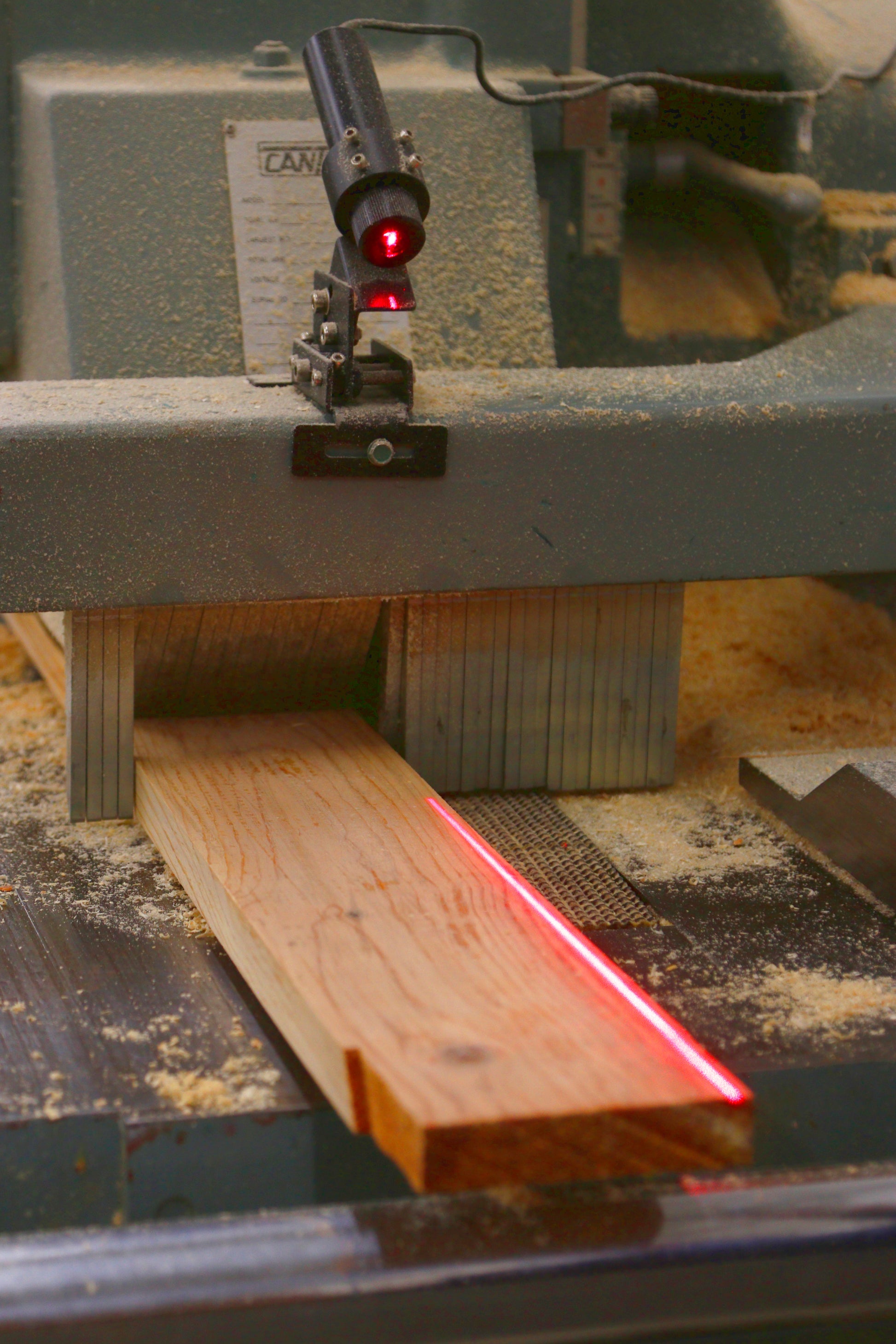

The Elite Line laser is our highest quality laser built with the latest technology in laser modules and utmost precision in optics to give you a crisp line in any environment. The housings are CNC-machined for dust and moisture protection of the laser module. Works well on headsaws, bandmills, metal breaks, straightline rips, edgers, stone cutting or any harsh industrial environments.

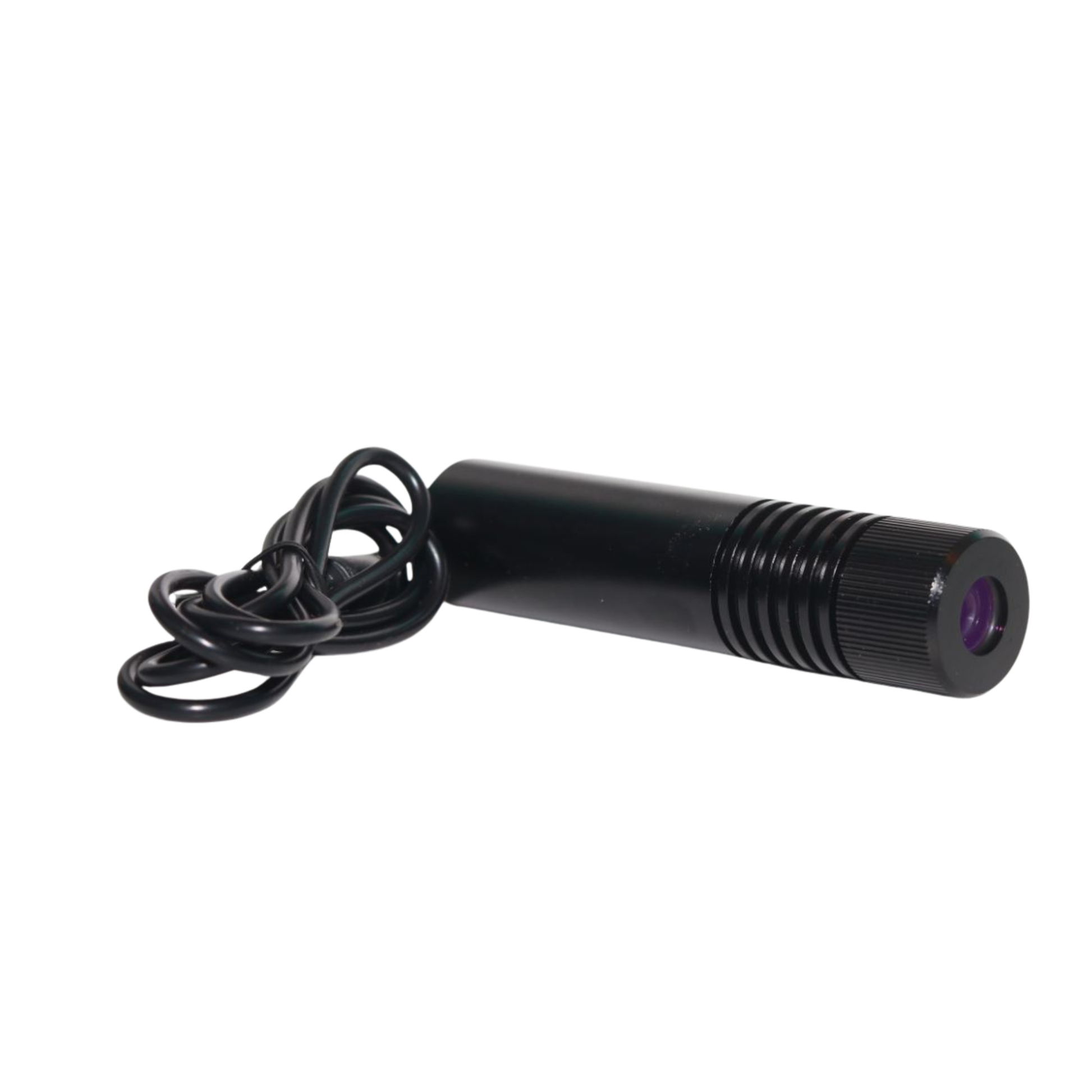

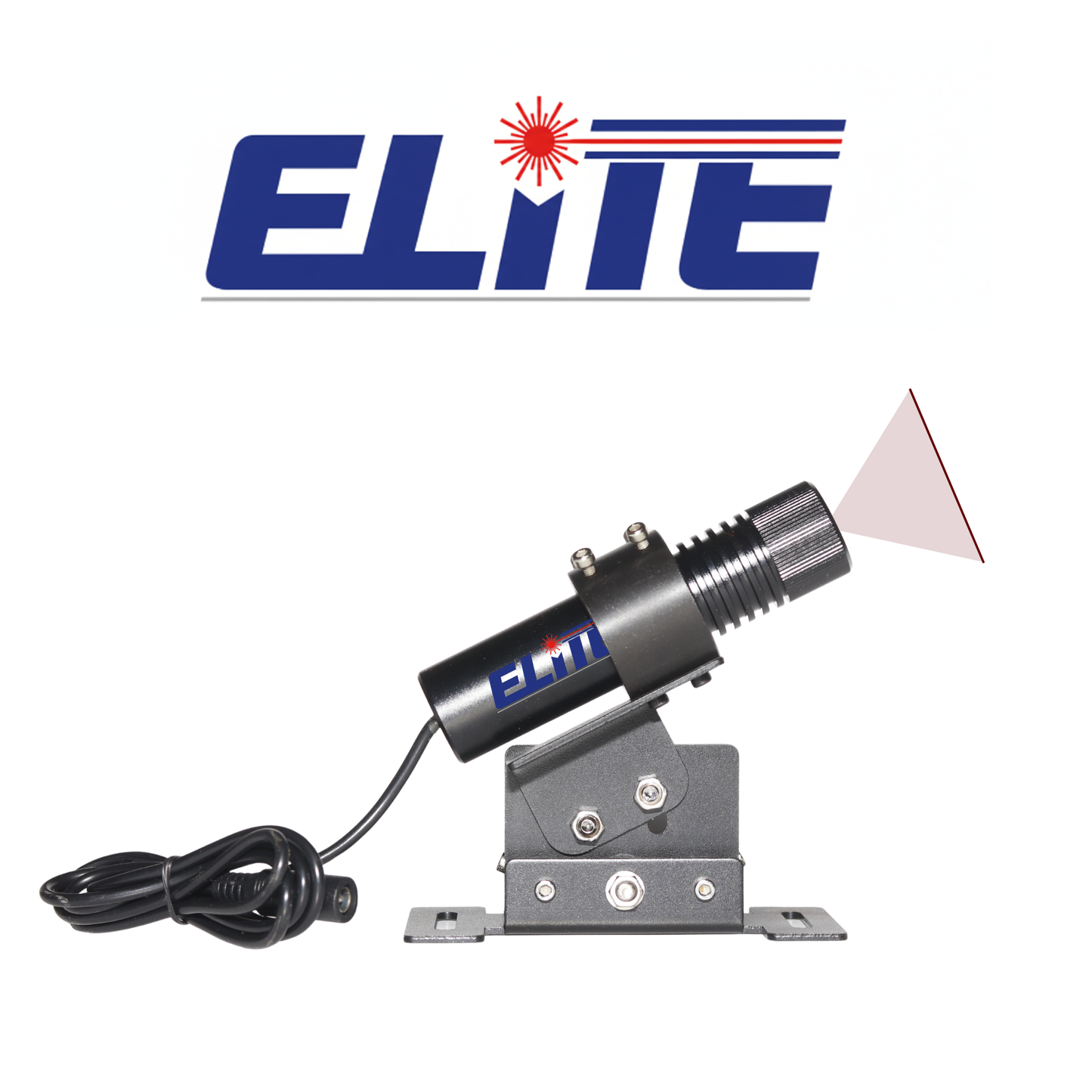

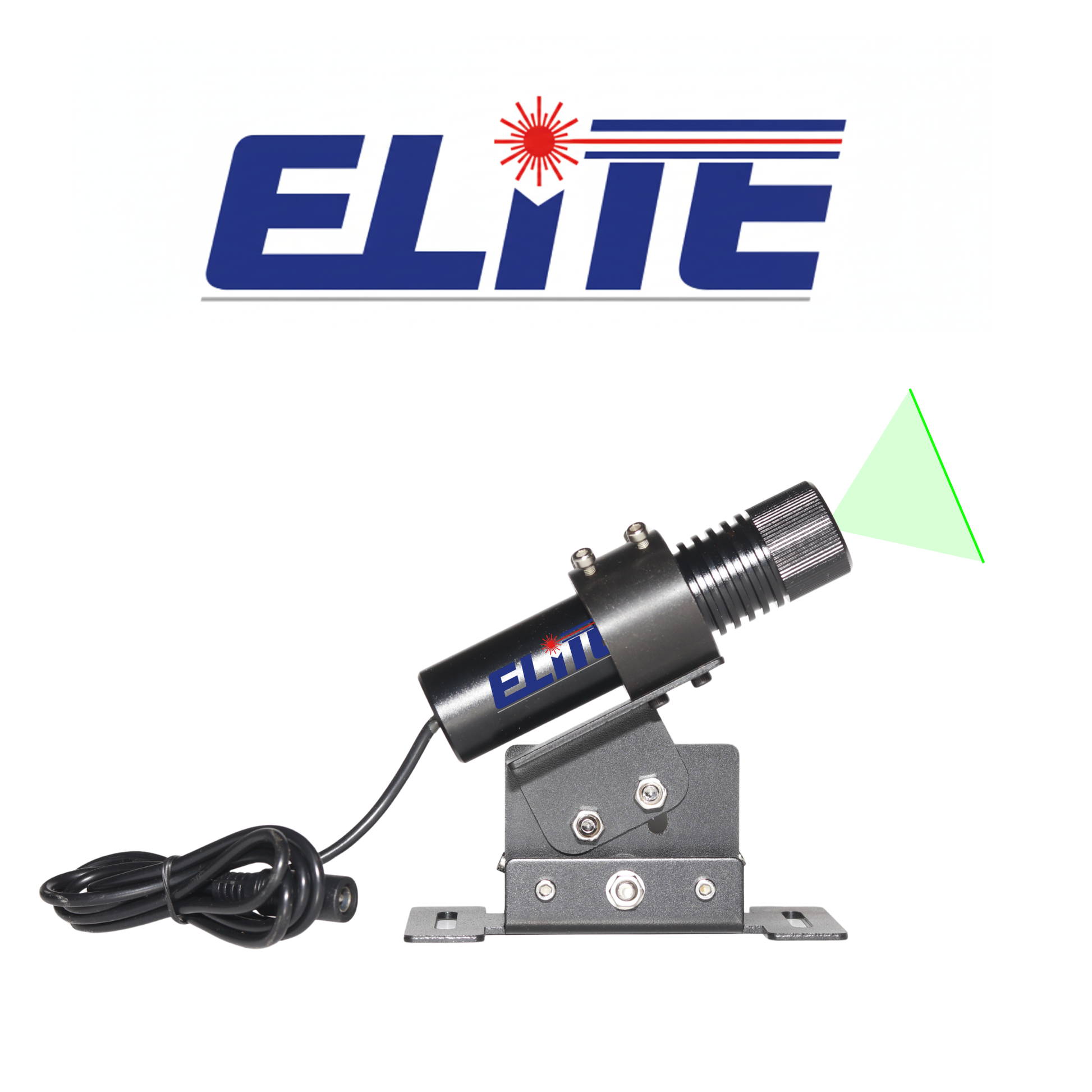

This module is available in  green 30mw (which is adequate for most indoor situations) or green 150mw for well lit areas. The usable beam length depends on the angle of the laser and the environment lighting but typically gives a crisp usable line up to 40 feet. A red option is also available but please note, additional lead time can be expected since we do not stock the red modules.

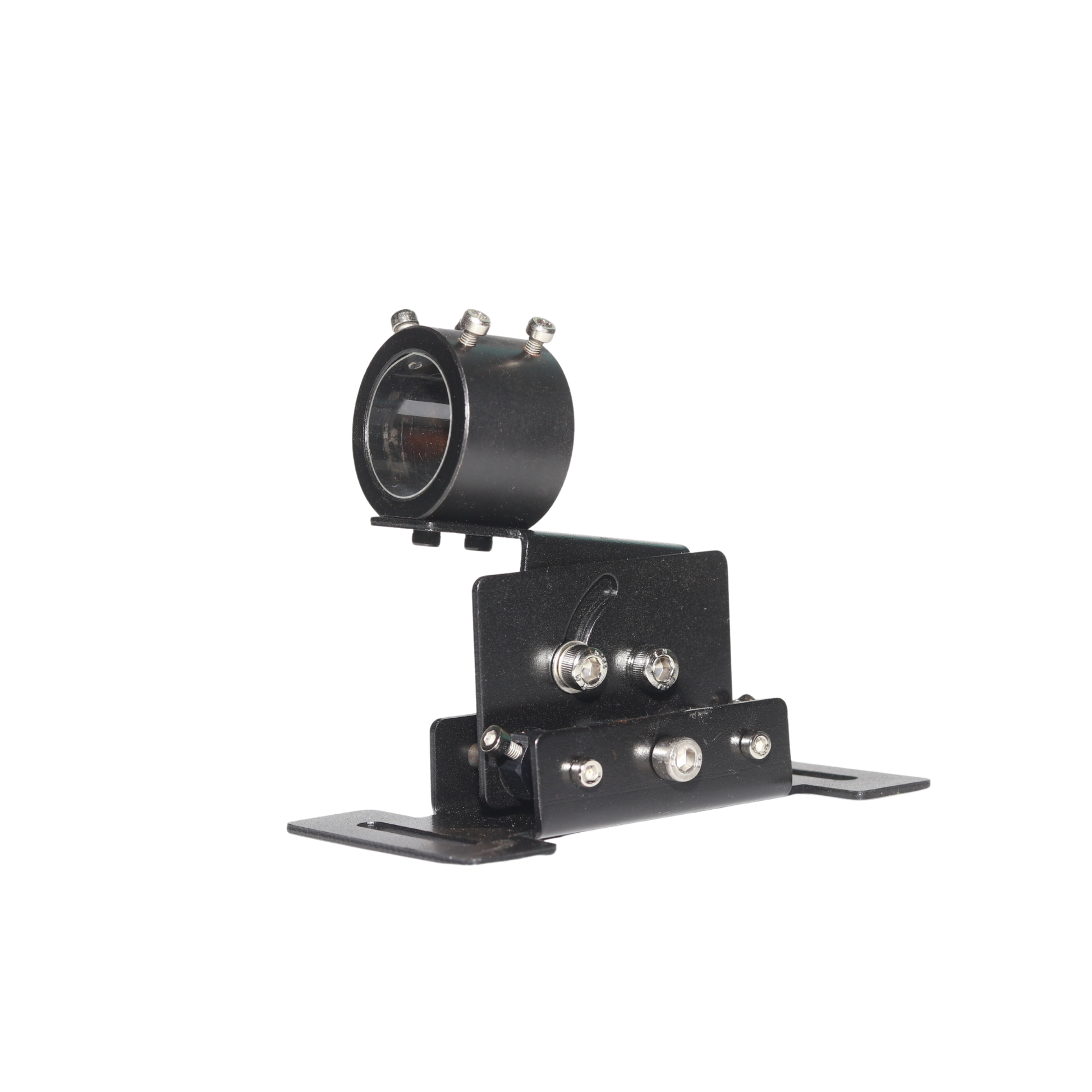

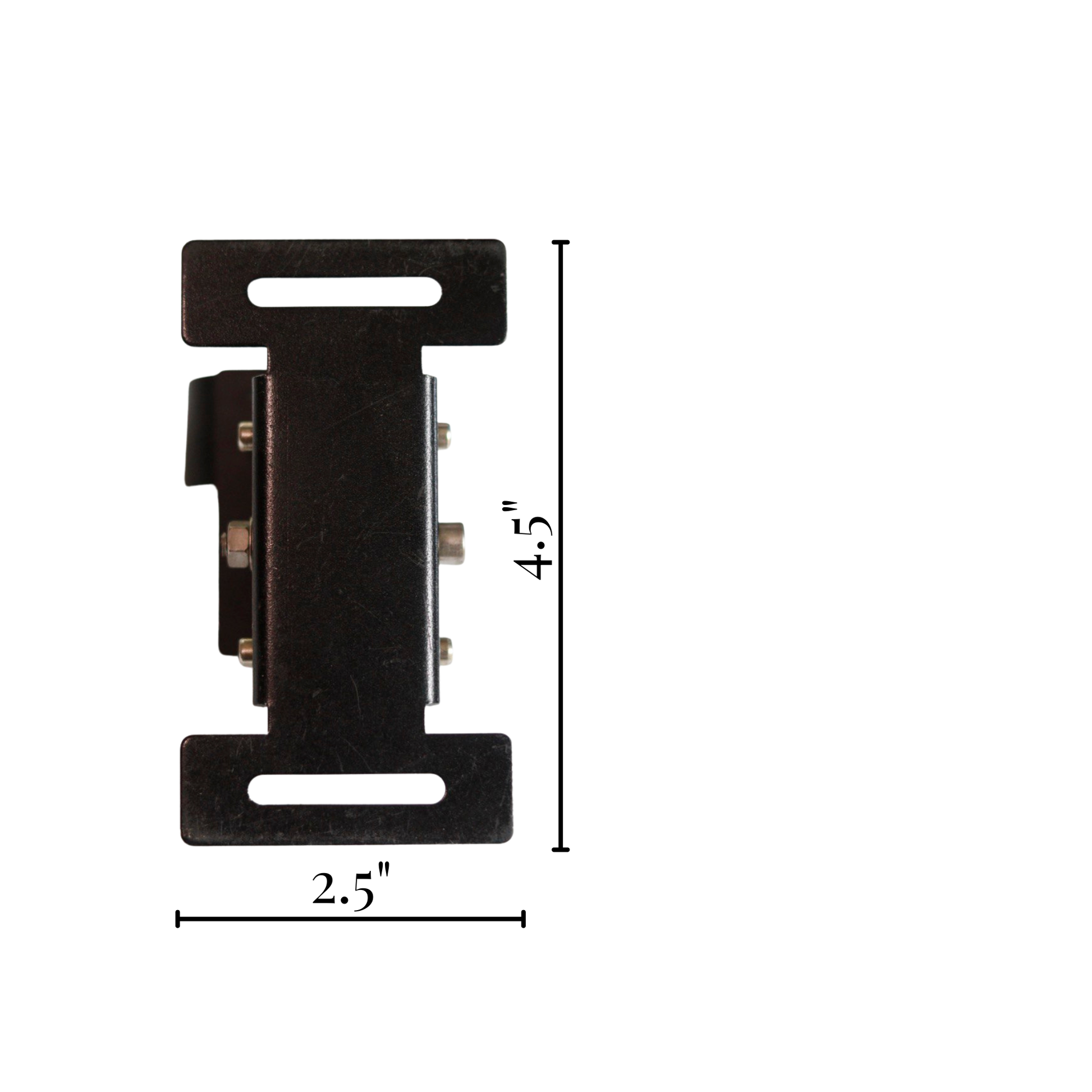

This setup offers a robust and solid mounting system designed to lock in place firmly and hold its accuracy well and withstand vibrations. It can also be fine-tuned with the adjustment screws on the mount. The exact dimensions of the mount can be found in the photo section.

Powering the laser is easy. You can use the included 110V adapter for a quick and simple hookup. If you have an alternate power source, the module runs on 12V DC. To maintain a clean, safe power flow and keep your warranty valid, be sure to use our 12v power regulator/cleaner when connecting directly to a battery or other 12v wiring option.
